TOPSCIEN INSTRUMENT (NING BO) CO.,LTD

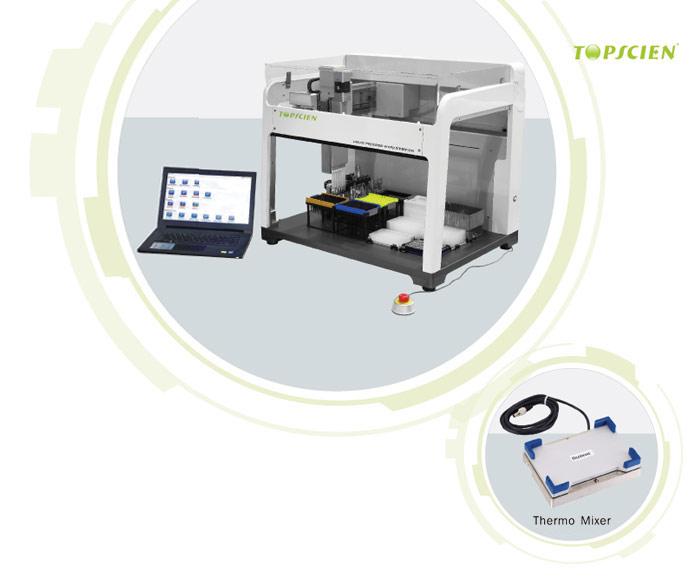

Automated Sample Preparation Station For Enzyme Reaction Template Reagent

TS-STATION-8030

Description :
TS-STATION-8030 iS equipped with a fully integrated mixer unit Which can be brought to a specified temperature This allows a fully automated sample preparation without the necessity of user intervention The mixer is designed to dissolve pellets, e.g.
cultivatad E. coli or magnetic baad applications . The thermo unit Of the shakcar ensuras the right temperature in the individual tubes and microplales from 4℃to 95℃ . By using Peltler elements,an additional water bath becomes unnecessary The TS-STATION-8050 is the ideal tool for a magnetic bead based nucleic acid extraction from blood or tissue or for cell separation purposes

Product features:
All the features and benefits of the
TS-STATION-8020 many more:
11 microplate format positions
In addition,one temperature controlled mixing positon
Temperature range RT 15℃ below to 95℃
Automatic fixation ofthe labware
Pipetting on other worktable positions is possible
while lhe mixer is in operation

Applications:
Bead based nucleic acid
purification technologies
Immunoassays
Cell assays
PCR. real-time PCR and sequencing setup
Serial dilutions
Hit picking
Concentration normalisation

order information:

Cat.No.	Part.No.	Specifiaction
8011801	TS-STATION-8030	AUTOMATED SAMPLE PREPARATION STATION FOR ENZYME REACTION TEMPLATE REAGENT

PARAMETER：
Automated Pipetting Station:

Cat.No.	Deck position	Platemaking time required	Pipetting volume range	Pipetting accuracy
8011801	12 plates	<10 minutes	0.3ul-10ml	<1ul,CV<10%: >1ul<5%
