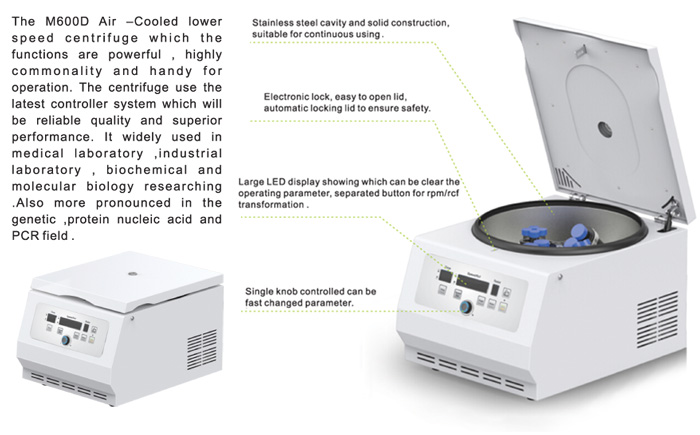

TC-M600D Air-Cooled Lower Speed Centrifuge

Feature:

Use the advanced and reliable ST microprocessor control system.

Accurate controlled the speed time and RCF

Frequency conversion brushless motor without maintenance . control speed 100-6000rpm.±15rpm

Centrifuge speed and RCF increase adjustment with 100rpm/100xg . timing control l-99 minutes or seconds instanianeous centrifugal, press the (flas) button which can be centrifuged faster

The masterdevice and the rotorwhich use the high strength material it have nice sealing property and high temperature sterilization performance.

Staninless steel cavity and solid construction,suitable for continuous use,electronic lock,easy to open lid,automatic locking lid to ensure safety

Large LED display showing which can be clear the operating parameter,separated button for rpm/rcf transformation

Single knob controlled can be fast changad parameter.
The centrifuge have door cover protection.excessive speed and imbalance detection system which can be real-time monitoring.Bnsure thB centrifuge safe operation.when appear the imbalance sound signal reminder and stop operation at the same time,LED display show the error code.
Automatic opened the cover when finish the operating.the samples will not overheating and discharge the sample more convenient
The rotor have the sealed cover.it will be preventiha contamination from sampla.



Technical data:
Technical data
Power supply
AC230V/50~60Hz
Power consumption drive
420W
Max. capacity
400ml(5ml×8/100mlx4)
Max. speed rpm
6000r/min
Max. RCF[×g]
5160xg
Interference suppression
EN61326-1:2003/EN61000-3-2:2006
Dimensions:D×W×H(cm)
390×500×320mm
Weight without rotor (Kg)
29.5kg
Noise level at max. speed(apprex)
≤60dB(A)
Max.Acceleration time
10s
Max.Deceleration time
15s
at23℃ ambient temperature

########

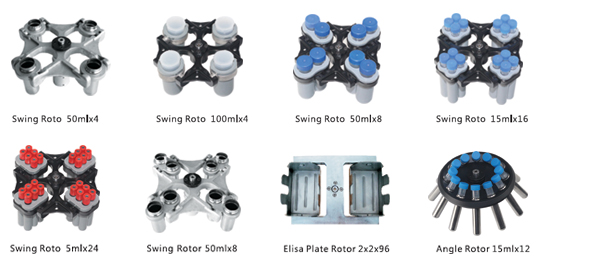

Order information:
Rotor.No.
Cat.No.
Volume
capacity(ml×tube)
Max. speed rpm(r/min)
Max. RCF(Xg)
Tube type
8011159
TC-M600D

8011159-1
TC-M601/Swing Rotor
50x4
5000
4980
PP cone base with scale
8011159-2
TC-M602/Swing Rotor
100x4
5000
4600
PP cone base with scale
8011159-3
TC-M603/Swing Rotor
50x8
4000
2720
PP cone base with scale
8011159-4
TC-M604/Swing Rotor
15x16
4000
2790
PP cone base with scale
8011159-5
TC-M605/Swing Rotor
5x24
4000
2540
EATA-K@
13mmx75/100mm
8011159-6
TC-M606/ ELISA Plate Rotor
2x2x96 holes
3500
2190
PP ELISA plate
8011159-7
TC-M607/ Angle Rotor
15x12
6000
5150
PP cone base with scale
