TOPSCIEN INSTRUMENT (NING BO) CO.,LTD

Magic Programmable Mixer

360° vertical rotating- for larger
particles longer wavelength mixing

Swinging -for culture medium and
larger partic~es medium- longer
wavelength mjXing

Oscillating- for small particjes short
wavelength mixing

Tube holder assemble discretionary

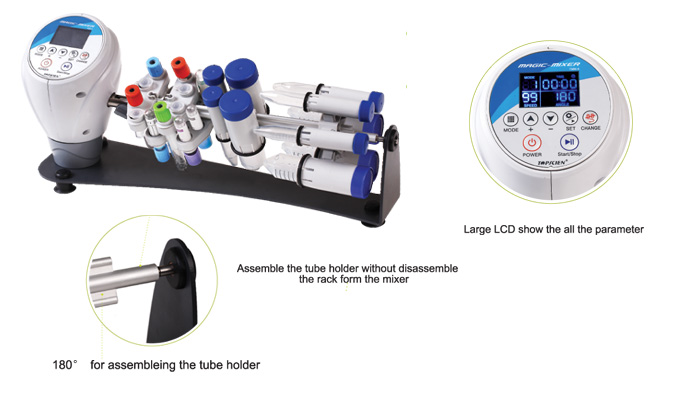

Large LCD show the all the parameter

2 sdditional custom programs (6 segments /program) can be created easily

10 different programs for rotation and mixing

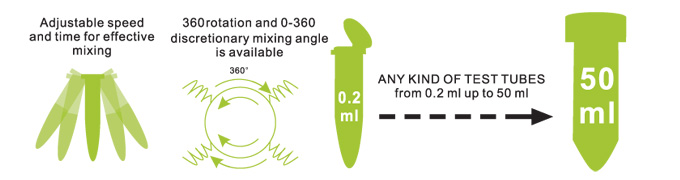

360°rotation and 0-360' discretionary mixing angle is available

Adjustable speed and time for effective mixing

Accept tubes from 0.2ml to 50ml

Cold room and incubator compatible

The Magic Programmable Mixer is a combination of variable speed rotator, advanced multiple tube vortex in one machine , it accept tubes from 0.2ml to 50ml ,all kinds of tube holder can be assembled discretionary in one rack.

The mixer can be used in ambient temperatures from +4 to 650°C . making it ideal for a variety of laboratory settings such as Molecular Biology .Biochemistry .Clinical and Histochemistry .

Small enough to fit on a crowded bench .the mixer is easily moved where it is needed the bench . cold room ,incubator or biological hood .

Specification：

Model	TM-MAGIC MIXER
Adaptor	DC12V,1000MA
Rotation speed	1-99RPM
Environment temperature	+4-65°C
Relative air humidity (at 20°C)%	up to 80

########

Order information：

(Cat.No)	Code No.	(Specilfication)

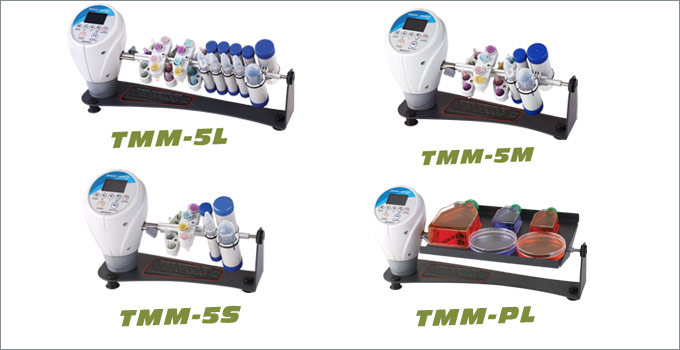

8011252	TMM-5L	420mm length Magic Mixer with standard rack (D10-12.5mm tubex20,D16-16.5mm tubex8,D29-29.5mm tubex2)

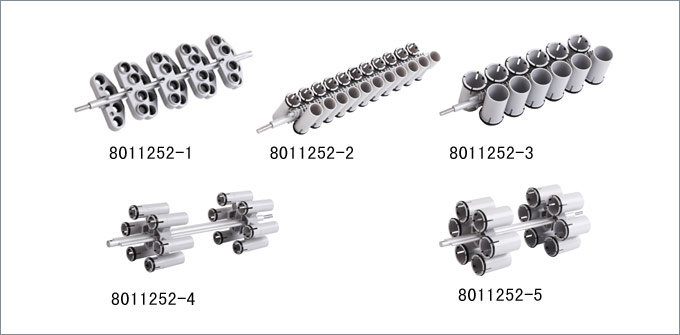

8011252-1	LH5X36	Rack for diameter 10-12.5mm tubesx36
8011252-2	LH15X22	Rack for diameter16-16.5mm tubesx22
8011252-3	LH50X12	Rack for diameter29-29.5mm tubesx12
8011252-4	LR15X12	Rack for diameter16-16.5mm tubesx12
8011252-5	LR50X12	Rack for diameter29-29.5mm tubesx12
8011253	TMM-5M	344mm length Magic Mixer with standard rack (D10-12.5mm tubex12,D16-16.5mm tubex2,D29-29.5mm tubex2)
8011253-1	MH5X24	Rack for diameter 10-12.5mm tubesx24
8011253-2	MH15X14	Rack for diameter16-16.5mm tubesx14
8011253-3	MH50X8	Rack for diameter29-29.5mm tubesx8
8011253-4	MR15X6	Rack for diameter16-16.5mm tubesx6
8011253-5	MR50X6	Rack for diameter29-29.5mm tubesx6
8011254	TMM-5S	316mm length Magic Mixer with standard rack (D10-12.5mm tubex8,D16-16.5mm tubex2,D29-29.5mm tubex2)
8011254-1	SH5X20	Rack for diameter 10-12.5mm tubesx20
8011254-2	SH15X10	Rack for diameter 16-16.5mm tubesx10
8011254-3	SH50X6	Rack for diameter29-29.5mm tubesx6
8011254-4	SR15X6	Rack for diameter 16-16.5mm tubesx6
8011254-5	SR50X6	Rack for diameter29-29.5mm tubesx6
8011255	TMM-PL	Mixer 420x125x168 with Platform(267x154)
8011256	TMM-PM	Mixer 344x125x168 with Platform(169x154)
8011257	TMM-PS	Mixer 316x125x168 with Platform(139x154)
